Description
The CI 580 packs 4 stereo zones into a 1U rack space to provide the most flexible and cost-effective BluOS™ package. Multiple CI 580s can be used to provide as many zones as required, and each zone can be grouped together in perfect sync using the BluOS Controller App, or you can play individual streams in different zones simultaneously. BluOS™ Music Management Unlike other solutions that rely on UPnP, or are simply repackaged PCs, the CI 580 features Bluesound’s proprietary BluOS operating system. BluOS supports many popular music services with full playback of 24-bit high-res music at sampling rates up to 192kHz. A BluOS Controller App is available for smartphone, tablet and desktop and allows you to access, control and stream music playlists to multiple BluOS-enabled zones in the home using simple touch-screen commands. BluOS features a deep integration with several of the top control systems, including Control4, Crestron, RTI and URC, among others. Unlike other network audio solutions, BluOS has a published API that allows a more complete and sustainable integration. Lag-free Multi-Zone Streaming The CI 580 can be integrated into a BluOS connected home, and deliver blazingfast music streams to any zone you select. By focusing on how to improve musical performance while providing a seamless network music experience, the CI 580 ensures that there are no skips or delays – even when streaming and controlling music from your smartphone or tablet. Analogue and digital inputs are also available to add a cable box and other non-network sources, and make them available and selectable in every zone. The CI 580 also includes a system interrupt feature to allow for doorbells and fire alarms to be heard.Specifications CI 580
Supported Operating Systems =Microsoft Windows VISTA, 7, 8, 10, Apple Macintosh
Supported File Formats =MP3, AAC, WMA, WMA-L, OGG, FLAC, ALAC, WAV, AIFF
Supported Cloud Services =WiMP, Slacker Radio, HighResAudio, JUKE, Deezer, Murfie, HDTracks, Spotify, TIDAL, Napster, Rhapsody
Free Internet Radio =TuneIn Radio, iHeartRadio
Rated Distortion Signal-to-Noise Ratio =≤0.005%
Sample Rate =-110dBA
Bit Depth =32 – 192kHz

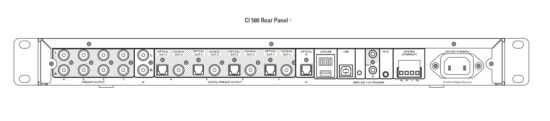

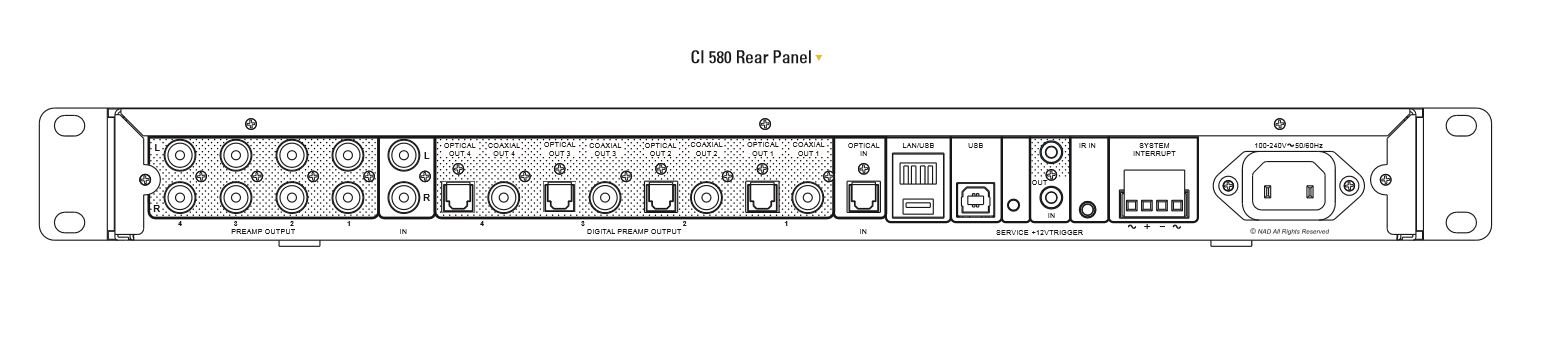

CONNECTIONS INPUT
Analogue =RCA Stereo
SPDIF =Optical (TOSLINK)
USB =Type A (for USB memory stick and supported peripherals – FAT 32 formatted)
+12V Trigger Out =12V ±20%
IR Input = 3.5mm Jack
System Interrupt = For doorbell/alarms
NETWORK
Ethernet/LAN =Ethernet RJ45, GigE
USER INTERFACE =FREE Android and iOS App available at GooglePlay and Apple App Store
Power =Front Panel Button
GENERAL
Standby Power =6W (Network Standby Mode)
Dimensions (W x H x D)* = 482.6 x 46 x 220mm (19.2 x 1.8 x 8.7”)**
Weight = 2.7kg (5.9lb)
