Description

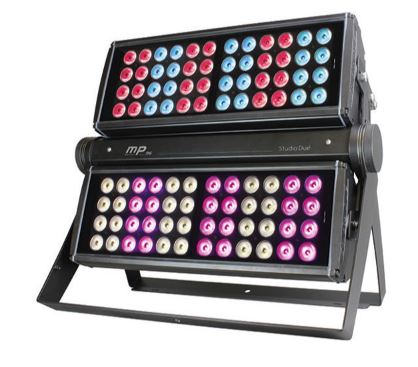

STUDIO DUE Wall washer: MPCOLOR 96 RGBW (it.194010) Wash/flood light fixture with 12 independent segment control 8 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. IP 65 protection rating. RDM/DRSTechnical specification
| Lighting source | |
|---|---|
|
LED type |
RGBW5050MULTICHIP
|
|
Number of LEDs |
96
|
|
LED expected lifetime (hrs) |
50000
|
|
Lumen MAX |
71808
|
|
Red lumen (lm) |
15360
|
|
Green lumen (lm) |
26880
|
|
Blu lumen (lm) |
4800
|
|
White lumen (lm) |
29568
|
|
Colour temperature range (K) |
2000 – 10000
|
| Optics | |
|
Lenses (upper head) |
8°
15°
15° x 30°
25°
40°
60°
|
|
Lenses (lower head) |
8°
15°
15° x 30°
25°
40°
60°
|
|
Filters (upper head) |
None
f 60°
f 100°
f 8°x 60°
frost 65°
|
|
Filters (lower head) |
None
f 60°
f 100°
f 8°x 60°
frost 65°
|
| Connections | |
|
Connectors and cables |
Main Power: PowerCon IP65 connector (male-female)
DMX signal: XLR5pin IP65 connector (male-female)
|
| Control | |
|
Control type |
Protocol USITT DMX512 – RDM
Protocol USITT DMX512 – RDM + Wireless (on request)
|
| Functions and Setup | |
|
Functions |
LED display with flip function
Dedicated DMX channel for white balance from 2000K to 10000K
Dedicated DMX channel for macro
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
CYM simulation
Flicker-free function
|
|
Setup |
RDM/DRS + touch control panel
|
|
DMX channels |
54ch – 48ch – 9ch – 4ch
|
| Power supply | |
|
Input range |
100 – 240 VAC; 47/63 Hz
|
|
Power (W) |
900
|
|
Current |
4A@230VAC
|
|
Power Factor |
PF>0,95@230VAC
|
|
Inrush current |
60A@230V
|
| Physical | |
|
IP protection rating |
IP 65
67 optional
|
|
Materials |
Ultra clear 4mm tempered glass
PMMA lenses
Aluminium alloy housing
Polyester powder coated
|
|
Mounting systems |
Surface
Truss (optional)
|
|
Colour finishing |
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
|
|
Marine Grade treatment |
None
Yes
|
|

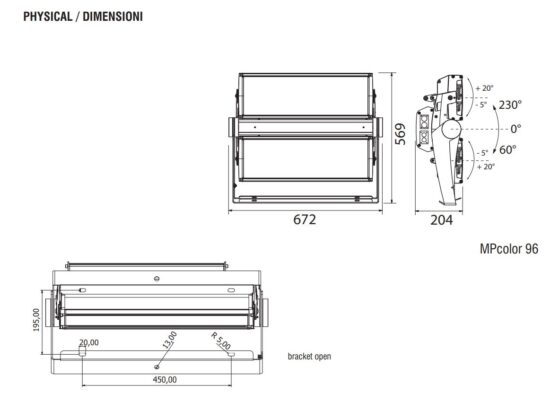

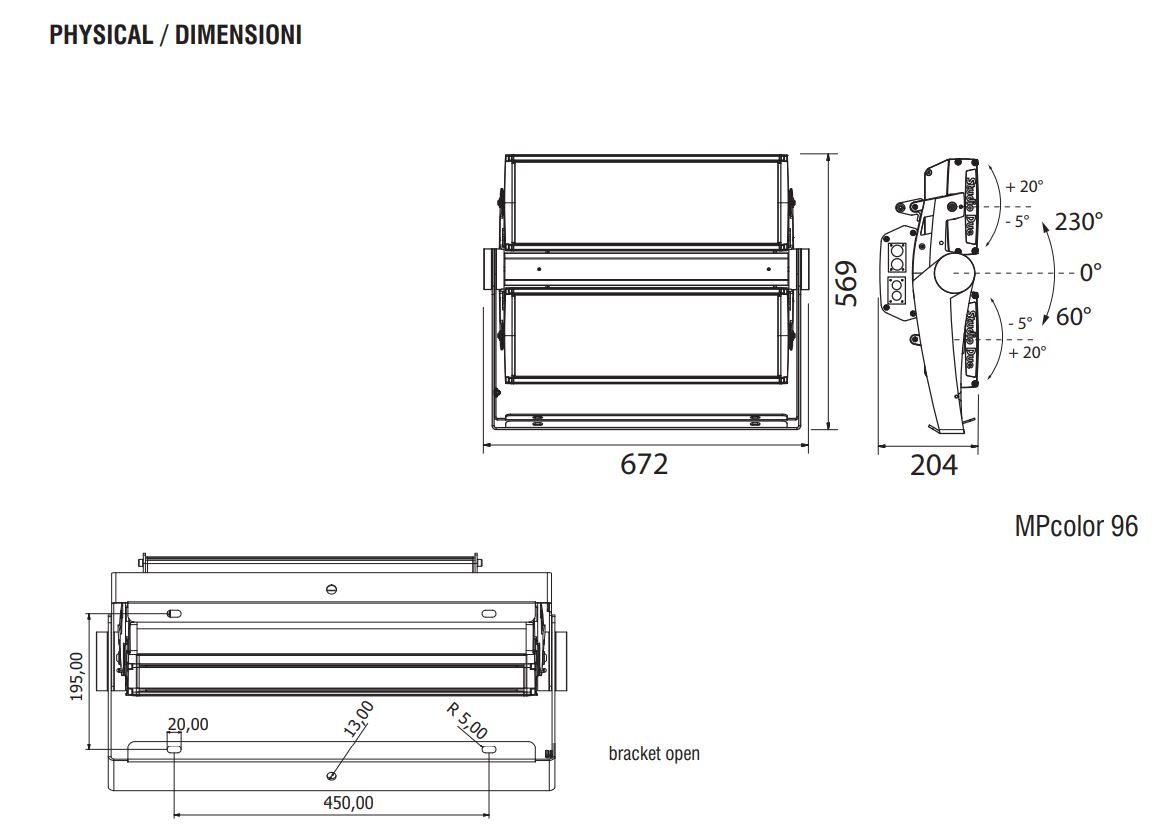

Sizes l x p x h (mm) |
672 x 204 x 569mm
|
|
Weight (Kgs) |
30 Kg.
|
| Optional/Accessories | |
|
Accessories – Handle |
None
Yes
|
|
Accessories – Flight case |
None
Yes
|
|
Accessories – Anti glare |
None
Yes
|
|
Accessories – Barn door |
None
Yes
|
