Description

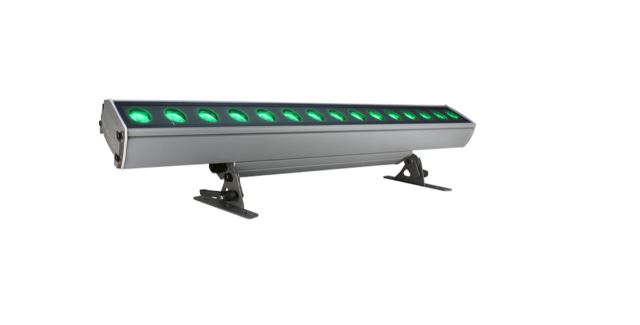

STUDIO DUE Linear bar: ARCHIBAR SL250 RGBW 150cm it.220517 Technical specificationLED type RGBW5050MULTICHIP
Number of LEDs 25
LED expected lifetime (hrs) 50000
Lumen MAX 16100
Red lumen (lm) 3400
Green lumen (lm) 6100
Blu lumen (lm) 1050
White lumen (lm) 6600
Lenses 8°
15°
15°x30°
25°
40°
60°
Filters None
f 60°
f 100°
f 8°x 60°
Connectors and cables Main Power: 3pin IP67 (male-female)
DMX signal: 4pin IP67 connector (male-female)
Control type Protocol USITT DMX512 – RDM
Protocol USITT DMX512 – RDM + Wireless (on request)
Functions LED display with flip function
Dedicated DMX channel for white balance from 2900K to 13000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
Setup RDM/DRS + touch control panel
DMX channels 9ch – 5ch – 4ch
Input range 100 – 240 VAC; 47/63 Hz
Power (W) 190
Current 0,85A@230V
Inrush current 60A@230V
IP protection rating 67
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 1517 x 163 x 160
Weight (Kgs) 9,9
Mounting systems Surface
Truss (optional)
Colour finishing Grey RAL 9006 (standard)
Black RAL 9005 (optional)
White RAL 9010 (optional)
Any RAL (optional)
Marine Grade treatment None
Yes
Product Category Linear Bar
LED type RGBW5050MULTICHIP
Number of LEDs 25
LED expected lifetime (hrs) 50000
Lumen MAX 16100
Red lumen (lm) 3400
Green lumen (lm) 6100
Blu lumen (lm) 1050
White lumen (lm) 6600
Lenses 8°
Filters None
Control type Protocol USITT DMX512 – RDM
Input range 100 – 240 VAC; 47/63 Hz
Power (W) 190
Current 0,85A@230V
Inrush current 60A@230V
IP protection rating 67
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 1517 x 163 x 160
Weight (Kgs) 9,9
Mounting systems Surface
Colour finishing Grey RAL 9006 (standard)
Marine Grade treatment None
Product Category Linear Bar
