WK2 Water Resistant In-Wall Keypad

Description

As a sub-distributor we are not allowed to show prices for this product please call for a price

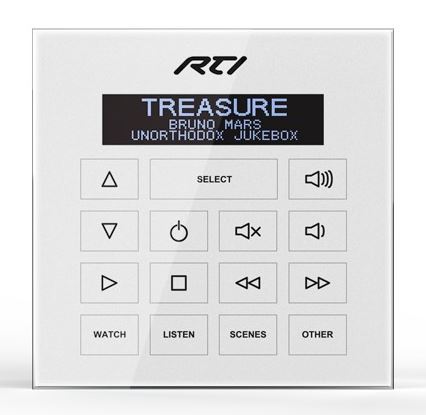

WK2 Water Resistant In-Wall Keypad



Quick Overview

Combining modern styling and custom control, the WK2 features an all-glass exterior construction, integrated capacitive touch keypad, and bright OLED display for intuitive control and two-way feedback. The water-resistant keypad extends the RTI automation platform to residential and commercial settings such as kitchens, bathrooms, outdoor theaters, health clubs, yachts, and more. Compatible with RTI’s full line of XP processors, the WK2 allows users to select and control audio, video, lighting and more.



*Requires an RTI XP series control processor.
*Integration Designer software only available to authorized RTI dealers.



  • Capacitive touch glass keypad is water resistant.
  • OLED display provides intuitive two-way feedback.
  • Sleek, low-profile, glass exterior design.
  • Wide operating temperature range for outdoor installations.
  • Integrated 10/100Base-T Ethernet port with Power-over-Ethernet.
  • Integrated mounting wings for easy installation in retrofit installs.
  • A metal conduit box is available (separately) for new construction
Power Power over Ethernet (PoE)
802.3af compliant Power-over-Ethernet router/switch (Class #2)
Display OLED Monochrome Display
128w x 32h pixels
Integrated capacitive touch keypad
Keypad Capacitive touch, glass keypad
Ethernet Port 10/100 Base-T with Power-over-Ethernet
Normal Operating Temperature +32°F to +131°F (0°C to +55°C)
Non-Operating Temperature 0°F to +150°F (-17°C to +65°C)
Operating Humidity 5% to 95% Non-condensing
A film on water on the keypad may stop touch functionality
Avoid direct exposure to rain or other water sources
Communications Ethernet
Enclosure High-impact molded ABS plastic
Mounting Integrated mounting wings, adhesive gasket
Front Plate Dimensions (H x W) 3.425”(87mm) x 3.425”(87mm)
Installation Cut-Out (H x W) 2.971”(75.5mm) x 2.967” (75.4mm)
Total Depth in Wall 2.36”(59.95mm) Plus cable
Weight 7.6 oz (216g)
Warranty One Year (Parts & Labor)

* All Specifications subject to change without notice.
** IMPORTANT NOTES:
• An 802.3af compliant Power-over-Ethernet router/switch (Class #2) must be used to avoid potential performance issues or damage to the unit.
• The WK2 CANNOT be powered from an external power supply, an RTI CB8 connecting block or an RTI control processor.
• The WK2 must be used with an RTI XP series control processor. It will not function as a standalone controller.
