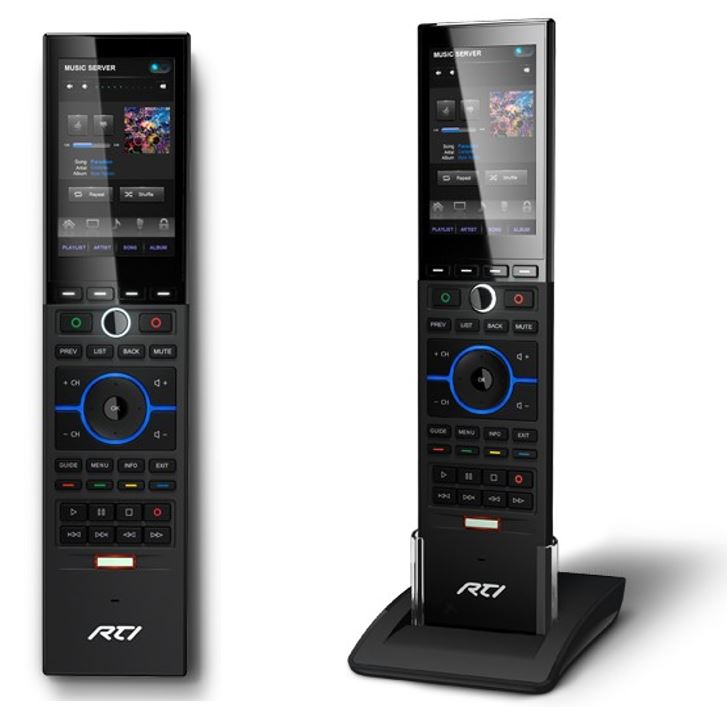

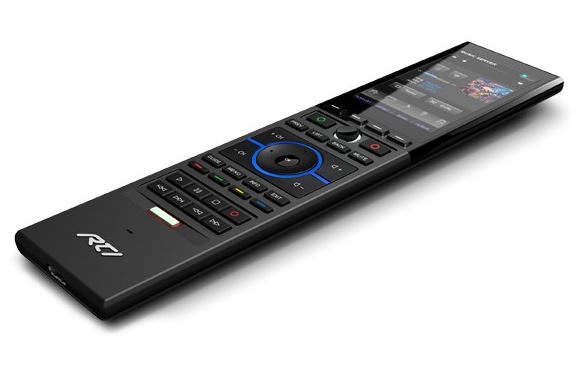

T3x Remote Control

Quick Overview

The culmination of over 20 years of award-winning engineering and design experience is clearly reflected in the T3x – the flagship controller from RTI. Precision crafted with a 3.5” flush-mount high- resolution touchscreen and fully programmable soft-touch buttons, this handheld beauty has exceptional ergonomics. Building on the technological advancements of its predecessors, the T3x redefines the expectations of what is possible with a remote control, starting with grip sensors, an accelerometer, two-way control, WiFi®, dual RF, and more. The amazing T3x takes the level of innovation to new heights with haptic feedback on the touchscreen, which gives the user a subtle vibration as confirmation of a button press. The built-in camera and microphone are yet another example of the advanced capabilities of the T3x, providing video intercom support directly on the remote.***   *Feedback requires a compatible two-way RTI control processor. *Integration Designer software only available to authorized RTI dealers. ***Video intercom support will be enabled with a firmware update – audio intercom is currently available

  • Dual RF transmission capability uses 433MHz and 2.4GHz (utilizing Zigbee® technology).
  • Integrated 802.11b/g/n wireless Ethernet enables viewing MJPEG video, wireless program updates and enhanced two-way control.
  • Two-way control using 2.4GHz (Zigbee®) and RTI control components.
  • Flush mount, 3.5″ color touchscreen for improved gesture support.
  • Integrated grip sensors keep the remote awake while in use.**
  • Accelerometer provides “instant-on” control.**
  • Haptic feedback on touchscreen gives subtle vibration when touchscreen is pressed.
  • Integrated microphone and speaker enables VoIP intercom support. (Video intercom will be added with a firmware update)***
  • Programming can be remotely updated wirelessly over WiFi.
  • Thirty-five assignable/programmable keypad buttons.
  • Four general purpose assignable/programmable keypad buttons with interchangeable keycap labels – Laser Shark compatible..
  • Cursor button allows simple scrolling list navigation.
  • Transmits IR and RF (or both – on a single button press!).
  • Extremely wide IR transmitting frequency range.
  • System includes a Lithium-Ion battery and docking station.
  • Completely customizable and programmable.
  • Non-volatile Flash memory stores your system configuration even when power is not present.
All specifications subject to change without notice * Two-way feedback available only when used with RTI control components. ** Grip sensors and accelerometer cannot be used simultaneously. *** Video intercom support will be enabled with a future firmware update.
Power 3.6 VDC, 1800 mAh Lithium-Ion Battery Pack
Power Management Automatic On/Off (integrated accelerometer/grip sensors)
Infrared Control Range 30 feet (9.1 meters) @ 60 degrees
Infrared Frequency Transmission Range 15kHz – 460kHz
Radio Frequency Control Range Up to 100 feet (30.5 meters) (with optional System Interfaces/Processors)
Radio Frequency Carrier 802.15.4 @ 2.4GHz (Zigbee® Wireless Networking) and 433MHz
Wireless Ethernet 802.11b/g/n @ 2.4Ghz
Touchscreen Display High-brightness color TFT LCD WVGA (480×800 pixels) with 16.7M colors Integrated high-resolution touchscreen
Display Size 3.5 in (89mm) diagonal
Backlights Blue/White LED (Keypad)
Camera Color CMOS VGA (480×640)
Microphone Silicon MEMS
Nominal Run Time on Full Charge 4-6 hours, continuous use (WiFi® & backlight setting dependent) (5 to 7 days on average use)
Standby Time on Full Charge 30 Days
Battery Charge Time 3-4 Hours
Total System Memory 128M Bytes Flash (non-volatile) memory
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro Total number of macros is limited only by memory Macro capability on every button
Communications USB 2.0 10 pin connection port or via charging dock
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Dimensions (L x W x D) 10.0″ (254mm) x 2.3″ (58mm) x 0.8″ (20mm)
Enclosure High-impact molded ABS plastic
Weight 9.0 oz. (255g) with battery pack
Warranty One Year (Parts & Labor) / 90 days on the battery
All specifications subject to change without notice
