KX7 7 inch In-Wall Touchpanel Keypad

Description

As a sub-distributor we are not allowed to show prices for this product please call for a price

KX7 7 inch In-Wall Touchpanel

Quick Overview

The extraordinary KX7 is packed full of features for complete control of entertainment, environment and security systems in any residential or commercial installation. The wall-mounted touchpanel has a slim profile, framing a vivid 7” LCD that can be custom tailored for intuitive control, while the multi-touch capacitive touchscreen allows screen swiping for page navigation. The built-in RS-232 and infrared communication allow for direct control of electronics without a control processor. In addition, video inputs make it possible to view analog video at up to 576p, while an Ethernet connection enables even more functionality, such as viewing IP security cameras, surfing the web and advanced two-way control. The integrated camera, microphone and speakers enable the convenience of intercom support directly on the KX7.   *Feedback requires a compatible two-way RTI control processor. *Integration Designer software only available to authorized RTI dealers

  • Vivid 7” 800×480 WVGA LCD with integrated multi-touch capacitive touch screen that allows screen swiping for page navigation.
  • Composite, S-Video or Component video inputs allow viewing analog video at up to 480i/576i/480p/576p resolution.
  • Integrated 10/100 Base-T (with PoE) and 802.11 wireless Ethernet.
  • Built-in high output IR port for direct control.
  • Built-in serial port for direct RS-232 control (one-way).
  • Built-in microphone and speakers enable VoIP intercom.
  • Powered using power supply, CB8 connecting block or PoE (Power over Ethernet).
  • Optional modules/processors provide additional control capabilities including two-way communication via RS-232/IP, sensing, IR and relay control.
  • USB and Ethernet Programming.

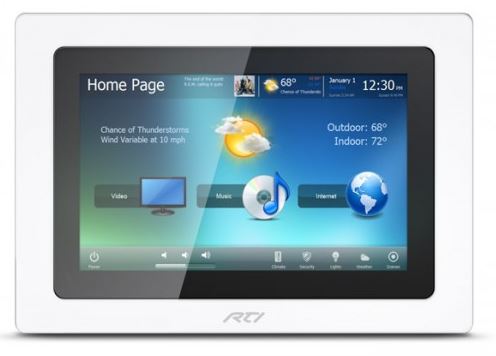

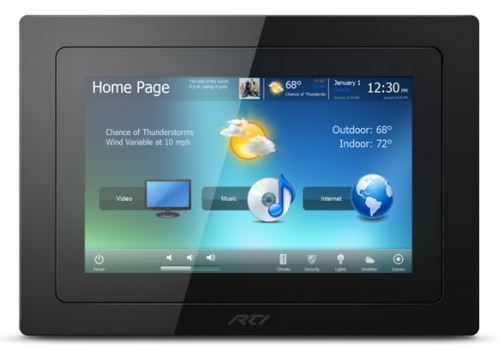

  • Stylish low-profile faceplate available in black or white (ships with white).
  • Integrated mounting wings for easy retrofit installations (metal back box also available separately).
Power +9VDC to +16VDC, 1A max or PoE (Using Class 3 PoE Ethernet router/injector)
Power Management Adjustable backlight brightness/power down time
Touchscreen Display High-brightness color TFT LCD WVGA (800×480 pixels) with 65K colors Integrated high-resolution projected capacitive
Display Size 7.0 in (177mm) diagonal
Display Backlight LED Backlit, 310nit
Infrared Output Port 200mA output Drives up to 1000 ft (300 m) of wire
Ethernet Port 10/100 Base-T with Power-over-Ethernet (Using Class 3 PoE Ethernet router/injector)
Wireless Ethernet 802.11b/g
Camera Color CMOS VGA (640×480)
Microphone Silicon MEMS
Speakers Two (2), Stereo 2 Watt, 8ohm
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Total System Memory 128M Bytes Flash (non-volatile) memory
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro Total number of macros is limited only by memory Macro capability on every button
Communications USB programming port
Video Input 3 BNC Connectors Composite, S-Video or Component analog video inputs NTSC/PAL/SECAM
Enclosure High-impact molded ABS plastic
Front Plate High-impact molded ABS plastic
Mounting Integrated mounting wings, or screws through front plate
Installation Cut-Out (W x H) 7.7 in (195mm) x 5.6 in (143mm)
Outer Bezel (W x H) 8.5 in (217mm) x 5.9 in (151mm)
Total Depth in Wall 1.4 in (36mm), 2.1 in (53mm)with Video Connector
Weight 1.4 lbs (634g)
Warranty One Year (Parts & Labor)
