KX3 3.5 inch In-Wall Touchpanel Keypad
Quick Overview
The KX3 is a unique, hybrid device that combines the capabilities of an in-wall touchpanel and an advanced control processor.* The result is an enhanced automation solution that delivers control simplicity and tremendous power in one cost-effective unit. Featuring a 3.5” high-resolution color touchscreen, two-way feedback and intercom capabilities, the KX3 performs beautifully in residential settings. The innovative touchpanel also shines in commercial applications such as classrooms and conference rooms where the built-in control processor and room status LED’s offer additional flexibility. With a sleek, refined design and amazing feature set “under the hood”, users will never know how much power is at their fingertips.
*NOTE: KX3 control processor features and video intercom will be enabled with firmware updates.
*Integration Designer software only available to authorized RTI dealers.
- Fully programmable 3.5″ touchscreen display with WVGA resolution (480w x 800h) TFT LCD to display custom buttons, text and graphics.
- Five hard buttons for convenient control. (Hard buttons may be custom engraved using Laser Shark service)
- Built-in control processor provides advanced capabilities including direct control of devices via IR, IP and RS-232, six voltage sense ports with sense-event capabilities, four relays for control via contact closure and an astronomical clock for time-based events.*
- Integrated 10/100 Base-T (with PoE) and 802.11 wireless Ethernet for viewing video from network security cameras, enhanced two-way feedback and remote programming updates.
- Built-in camera, microphone and speakers provide intercom capability.*
- Proximity sensor automatically wakes the unit up when approached by the user and an ambient light sensor adjusts the brightness.
- Integrated mounting wings for easy installation in retrofit installs. Backbox also available (sold separately)

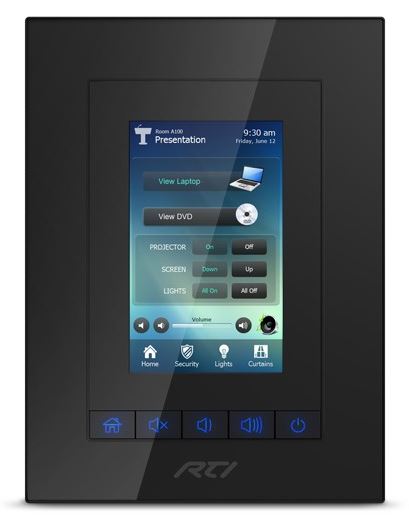

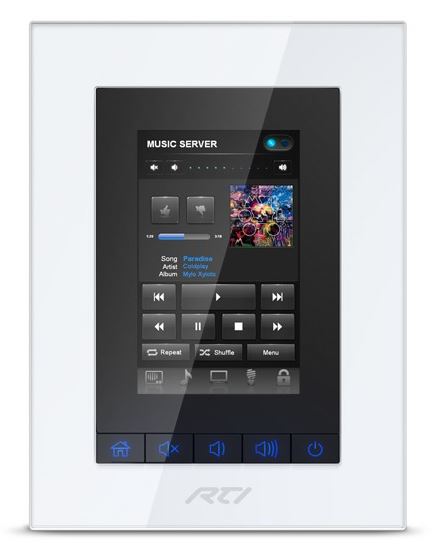

- Ships with stylish, low-profile white bezel. Bezels also available in black and brushed aluminum (sold separately).
- Faceplate and buttons are black with a glossy finish.
- Optional modules/processors for voltage sensing, relays and advanced two-way control.
- USB and Ethernet programming.
*NOTE: KX3 control processor features and video intercom will be enabled with firmware updates.
* All Specifications subject to change without notice.
| Power | +9VDC to +16VDC, 1A max |
| Power Management | Adjustable backlight brightness, Ambient light sensor, Proximity sensor |
| Touchscreen Display | High-brightness color TFT LCD WVGA (480×800 pixels) with 16.7M colors Integrated high-resolution resistive touchscreen |
| Display Size | 3.5 in (89mm) diagonal |
| Display Backlight | LED Backlit, 200nit |
| Infrared Output | Through control port, 200mA output* Drives up to 1000 ft (300 m) of wire |
| Serial Port | RJ-45, RS-232 communcation* |
| Ethernet Port | 10/100 Base-T with Power-over-Ethernet |
| Wireless Ethernet | 802.11b/g/n |
| Relays | Four, 3 Amps @ 30 VDC* |
| Sense Inputs | Six, 3-24VDC* |
| Radio Frequency Control Range | Up to 100 feet (30.5 meters)* Communication with optional wireless Interfaces* |
| Radio Frequency Carrier | 802.15.4 @ 2.4GHz (Zigbee® Wireless Networking)* |
| Camera | Color CMOS VGA (640×480)* |
| Microphone | Silicon MEMS |
| Speaker | One (1) 2 Watt, 8 Ohm |
| Total System Memory | 128M Bytes Flash (non-volatile) memory |
| Device Capability | Total number of devices is limited only by memory |
| Macro Capability | Unlimited steps in a single macro Total number of macros is limited only by memory Macro capability on every button |
| Communications | USB programming port |
| Enclosure | High-impact molded ABS plastic |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Mounting | Integrated mounting wings, or screws through front plate |
| Bezel Dimensions (H x W) | 5.876in (149.25mm) x 4.352in (110.5mm) |
| Installation Cut-Out (H x W) | 5.192in (131.8mm) x 2.942in (74.7mm) |
| Total Depth in Wall | 1.265in (32.1mm), with mounting wings 1.624in(41.2mm) NOTE: Additional room may be required depending on connections |
| Weight | 8.9oz (252g) |
| Warranty | One Year (Parts & Labor) |
*NOTE: KX3 control processor features and video intercom will be enabled with firmware updates.
* All Specifications subject to change without notice.
