KX1 1.2 inch In-Wall Audio Distribution Keypad

Description

As a sub-distributor we are not allowed to show prices for this product please call for a price

KX1 1.2 inch In-Wall Audio Distribution Keypad



Quick Overview

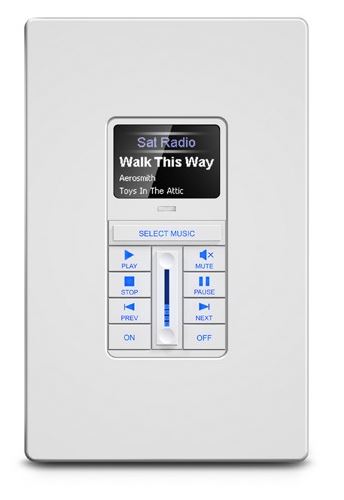

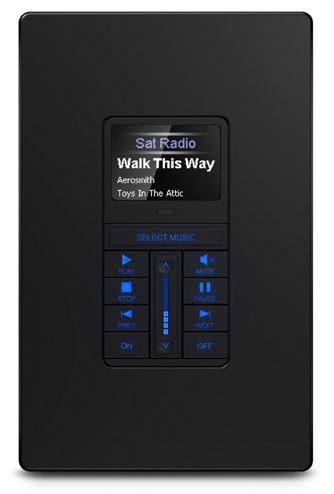

The KX1 in-wall keypad is designed for intuitive multi-room audio control via the RTI control system. A 1.2” color OLED display, eleven fully-programmable hard buttons and an open architecture, provide simple control over media streamers, AV receivers and more. When integrated with an RTI XP control processor and supported distributed audio systems, the customizable LED display provides two-way feedback from the selected source while a backlit bar displays the current volume level. Easily blending into any decor, the KX1 is compatible with standard Decora® style wall plates and is available in white, black and light almond..



  • In-wall keypad with 1.2” color OLED display with two-way metadata feedback.
  • Assignable/programmable hard buttons for common functions.
  • Available in white, black and light almond.
  • Backlit volume level indicator.
  • Use any standard Decora® type wall plate.
  • IR output for direct control of devices up to 1000 feet away.
  • Ethernet port enables reliable communication with RTI control system.
  • Fits in a single gang electrical outlet box.
  • Software and firmware updates via USB and Ethernet.
  • Optional modules/processors for voltage sensing, relays and advanced two-way control.
  • USB and Ethernet programming.
Power +9VDC to +16VDC, 350mA max
Power Management Adjustable backlight brightness, Ambient light sensor
Display Color OLED with 65K colors
Display Size 1.2in (30.5mm) diagonal, 128w x 96h pixels
Backlight Blue/Red LED
Infrared Output Through control port, 200mA output*
Drives up to 1000 ft (300 m) of wire
Ethernet Port 10/100 Base-T
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro
Total number of macros is limited only by memory
Communications USB programming port, Ethernet
Enclosure Formed steel, black powder coat finish
Front Plate High-impact molded ABS plastic – white, black or light almond
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Mounting Mounts in a single gang electrical box
Wallplate Purchased separately (Decora style)
Dimensions (H x W x D) 4.1in (104mm) x 1.78in (45.2mm) x 1.02in (25.9mm)
Installation Cut-Out (H x W) 2.85in (72.39mm) x 1.78in (45.2mm)
Total Depth in Wall .75in (19mm) plus cables
Weight 4.0oz (113g)
Warranty One Year (Parts & Labor)
